NasaJet NJ-18® – Industrial inkjet technology redefined

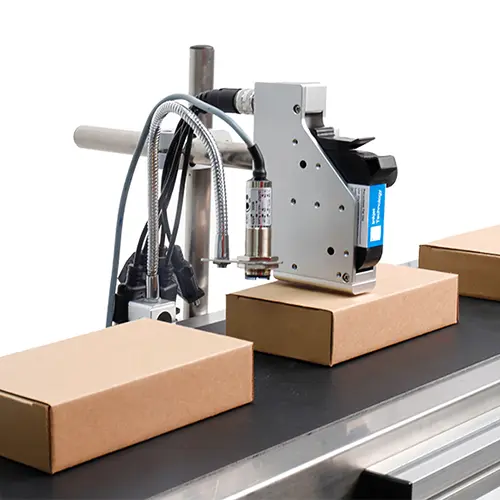

NasaJet NJ-18-P1 marking system
NasaJet® NJ-18-P1 marking system

With the NasaJet® NJ-18 series without an integrated LCD monitor, you benefit from a powerful, modular inkjet printing solution for modern production lines with 1/2 inch TIJ printheads. Developed for maximum flexibility and highest reliability, the system impresses with its scalable architecture featuring 1 to 8 printheads – perfectly tailored to your individual requirements.

The NasaJet® NJ-18 series enables high-resolution printing of barcodes, QR codes, batch numbers, logos, and variable data in real time – even at high production speeds of several hundred meters per minute.

Would you like a print sample for your specific application?

Simply send us a material or sample product to be printed after prior arrangement, and you will receive a printed sample in return. Just contact us and we will explain the process.

Contact...

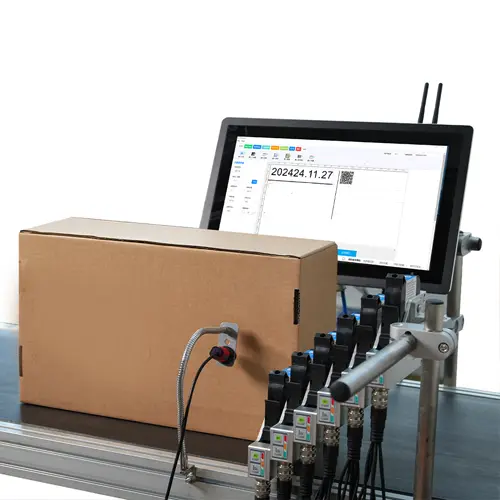

NasaJet NJ-18-P6 coding system
NasaJet® NJ-18-P6 coding system

Modular system for maximum flexibility

Whether an entry-level solution or a high-end application:
Thanks to the freely configurable number of printheads, the NasaJet® NJ-18 series grows with your requirements. From simple markings to large-area multi-line printing – all in one system.

The NasaJet® NJ-18 series is ideal for a wide range of industries:
Food, pharmaceuticals, cosmetics, packaging, electronics, construction materials, and more. Materials such as cardboard, plastic, metal, or cables are printed reliably and with sharp precision.

Industrial performance – uncompromising reliability

Equipped with industrial-grade hardware, an embedded system, and a robust housing, the NJ-18 is designed for demanding environments. Dust, moisture, or temperature fluctuations do not affect print quality or operational reliability.

  • Seamless integration into your production
  • Easy installation thanks to compact design
  • Support for USB and industrial interfaces
  • Integration into existing production and ERP systems
  • Remote control and offline printing possible

Technical specifications

Feature Description
Printing technology Thermal Inkjet (TIJ)
Printhead configuration 1–8 printheads (modularly expandable)
Print height 12.7 mm (1/2 inch) per printhead (combinable for greater heights)
Print resolution Up to 600 dpi
Print speed Up to 300 m/min (depending on resolution and application)
Print content Text, date, time, serial numbers, barcodes, QR codes, logos
Supported codes EAN, Code128, QR, DataMatrix, GS1
Interfaces USB, external sensors, encoder
Operation External control / software / external display
Integration Integration into production lines & ERP systems possible
Ink type Fast-drying TIJ inks (water- and solvent-based)
Material compatibility Cardboard, paper, plastic, metal, cables, ...
Operating environment Industrial-grade (dust- and temperature-resistant)

The NasaJet® NJ-18 series – the smart choice for efficient marking

Maximize your production performance and secure a competitive advantage with a printing solution that thinks ahead: flexible, powerful, and ready for Industry 4.0.

Are your applications "even larger"?

Then take a look at the NasaJet® NJ-28 series with up to 8 parallel 1 inch (25.4 mm) printheads

NasaJet® NJ-28 Series...
