NasaJet® 1000 Series – the new dimension of universal product marking

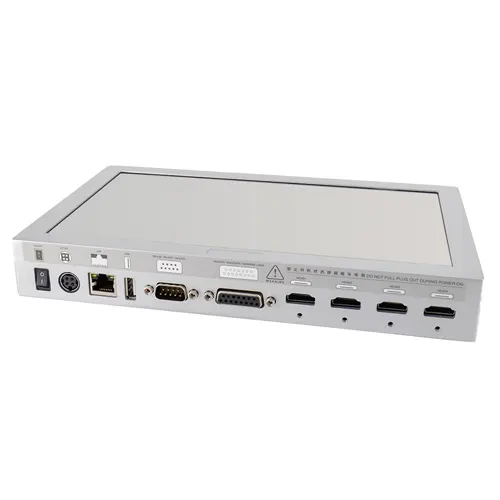

NasaJet NJ-1006 marking system
NasaJet® NJ-1006 marking system

The NasaJet 1000 series represents a highly flexible, industrial printing solution specifically developed to intelligently, reliably, and efficiently meet the complex marking requirements of modern production lines. Based on proven thermal inkjet technology, this series enables precise, dynamic marking of a wide range of products – from simple batch numbers to variable barcodes and QR codes.

What makes this series particularly special is its flexible configuration: it can be equipped with 1 to 6 independent printheads, allowing you to adapt it precisely to the requirements of your production line. This enables printing heights ranging from just a few millimeters up to several centimeters, depending on how many heads you use and how they are arranged.

Would you like a print sample for your specific application?

Simply send us a material or sample product to be printed after prior arrangement, and you will receive a printed sample in return. Just contact us and we will explain the process.

Contact...
NasaJet NJ-1006 marking system
NasaJet® NJ-1006 RS232/Ethernet

Precision through 1/2 inch TIJ Thermal Inkjet technology

At the core of the NasaJet® 1000 series is the proven 1/2 inch thermal inkjet (TIJ) technology, known for high print quality with minimal maintenance requirements. This technology ensures that variable data such as text, serial numbers, barcodes, and QR codes are applied clearly, sharply, and reliably to a wide variety of materials – even at high speeds – from cardboard and plastic to coated surfaces and metal.

Seamless integration into modern production environments

Another key advantage of the NasaJet® 1000 series is its connectivity. With RS232 and Ethernet interfaces, the system is ideally suited for industrial operation: data from higher-level controllers or IT systems can be processed directly, allowing dynamic content such as lot or batch numbers, timestamps, or database-driven data to be printed in real time. At the same time, Ethernet connectivity enables easy integration into production networks and centralized management.

High performance in continuous operation

The NasaJet® 1000 series is designed for robust use in industrial environments. Even during continuous operation on high-speed lines, print quality remains consistently high, as TIJ technology operates without moving wear parts and uses a reliable cartridge system. The series' printing software supports variable data sets and complex layouts, allowing you to easily handle even demanding marking tasks.

Versatile applications

Whether in food and beverage production, pharmaceuticals and chemicals, cosmetics manufacturing, or the packaging industry – the NasaJet® 1000 series offers a solution for nearly every sector. With its combination of flexibility, high print resolution, and stable interface support, it is a future-proof choice for companies that value efficiency, precision, and integration.

  • Seamless integration into your production
  • Easy installation thanks to compact design
  • Support for network, USB, and industrial interfaces
  • Integration into existing production and ERP systems
  • Remote control and offline printing possible

Technical specifications NJ-1002/1004/1006

Feature NJ-1002 NJ-1004 NJ-1006
Printing technology 1/2 inch Thermal Inkjet (TIJ)
Printhead configuration 1–2 printheads 3–4 printheads 3–6 printheads
Print height 12.7 mm (1/2 inch) per printhead (combinable for greater heights)
Print resolution 600x600 dpi
Print speed Up to 300 m/min (depending on resolution and application)
Print content Text, date, time, serial numbers, barcodes, QR codes, logos
Supported codes EAN, Code128, QR, DataMatrix, GS1
Interfaces USB, RS232, Ethernet, external sensors, encoder
Operation Integrated display/controller
Ink type Fast-drying TIJ inks (water- and solvent-based)
Material compatibility Cardboard, paper, plastic, metal, cables, ...
Operating environment Industrial-grade (dust- and temperature-resistant)

Future-proof, flexible, precise – the NasaJet® 1000 series

The NasaJet® 1000 series combines precision, speed, and flexibility in a single high-performance system. With proven 1/2 inch TIJ technology, the flexible option of 1 to 6 printheads, and powerful RS232 and Ethernet interfaces, it is perfectly suited for modern, networked production lines. It prints reliably on a wide variety of materials, integrates effortlessly into existing processes, and scales with your requirements. For companies that value efficient processes, highly precise marking, and future-proof technology, the NasaJet 1000 series offers the ideal solution – simple, robust, and versatile.
